Product Code : 05109

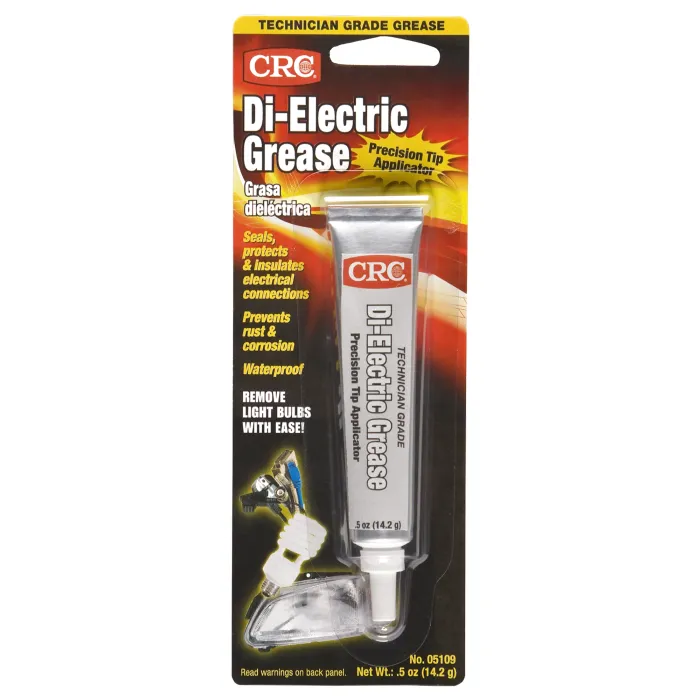

CRC Tech Grade Dielectric Grease w/Precision Tip 14.2g
DESCRIPTION
CRC Di-Electric Grease seals, lubricates, waterproofs and insulates electrical connections with a thin, non-curing silicone compound that helps maintain electrical performance by reducing line sag, arcing, voltage drops and problems caused by adverse weather conditions. CRC Di-Electric Grease also provides an exceptional lubricant for fasteners used to support temporary electrical work. It improves electrical performance during adverse conditions such as rain, fog, salt spray and temperature extremes. CRC Di-Electric Grease is also excellent for lubricating and sealing rubber and plastic parts including O-rings.
Applications
Recommended for use on electrical panels, outdoor lighting, scoreboards, traffic lights, high voltage poles, transformers, disconnects, switching mechanisms, electrical contacts, spark plugs, battery terminals, fasteners, O-rings, rubber and plastic parts
Features/Benefits:
Seals, lubricates, protects, insulates and waterproofs. Temperature resistant – maintains performance level year round, will not harden, freeze, dry or melt due to temperature fluctuations. Rubber and plastic safe, will not degrade seals, gaskets or plastics.
CRC Di-Electric Grease seals, lubricates, waterproofs and insulates electrical connections with a thin, non-curing silicone compound that helps maintain electrical performance by reducing line sag, arcing, voltage drops and problems caused by adverse weather conditions. CRC Di-Electric Grease also provides an exceptional lubricant for fasteners used to support temporary electrical work. It improves electrical performance during adverse conditions such as rain, fog, salt spray and temperature extremes. CRC Di-Electric Grease is also excellent for lubricating and sealing rubber and plastic parts including O-rings.
Safety Data Sheet
Technical Data Sheet
| Appearance | Viscous translucent grease |
|---|---|
| Barcode | 78254051093 |
| Brand | CRC |
| Dielectric Strength | 500 Volts/Mil |
| Film Type | Grease |
| Flash Point | >120℃ |
| Generic Description | Dielectric Grease |
| Leakage | None |
| NLGI Grade | 3 |
| Plastic Safe | Yes |
| Pour Point (C) | -45.56°C |
| Pour Point (F) | -50°F |
| Product Code | 05109 |
| Removal (How To) | Remove with a degreaser. |
| UPC Code | 078254051093 |
| Unit Depth (mm) | 70 |
| Unit Dimensions | 23H 200W 70D mm |
| Unit Height (mm) | 23 |
| Unit Package Description | 14.2g Tube |
| Unit Size | 14.2g |
| Unit Width (mm) | 200 |
| Units per Case | 12 |
| Water Washout | 0.75 |
| Worked Penetration | 230 to 245 |
| Working Temp (C) | 298.89°C |
| Working Temp (F) | 570°F |
